Good for
- Belt drives on small machines
- Idlers and tensioner wheels
- Learning revolved profiles

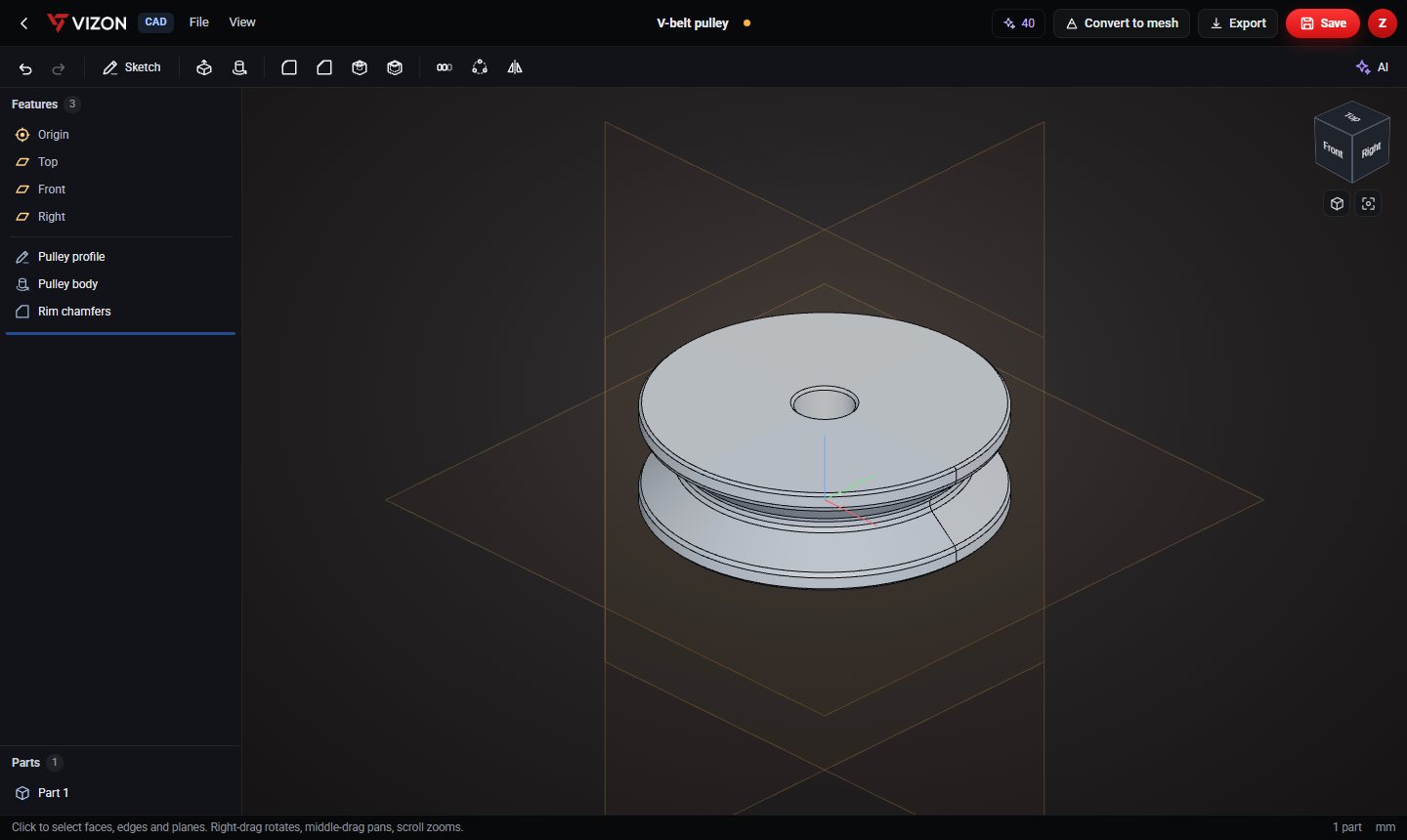

V-belt pulley CAD model
A 60 mm pulley with a single V groove and a 10 mm bore, made from one revolved profile with chamfered rims. The groove shape is part of the sketch, so it can be matched to your belt section.
Free to use under CC BY 4.0. Made in VIZON CAD.
Specifications
Solid volume: 42,105 mm³, measured by the VIZON CAD kernel.
| Outside diameter | 60 mm |
|---|---|
| Groove root diameter | 48 mm |
| Width | 18 mm |
| Bore | 10 mm |
How it was made
This part is 3 parametric features in the VIZON CAD editor. Each line below is one feature in its feature list, so every size can be changed and the part rebuilds.
| Feature | Type | Settings |
|---|---|---|
| Pulley profile | Sketch | Front plane · 1 item |
| Pulley body | Revolve | New · 360° about sketch Y |
| Rim chamfers | Chamfer | 0.5 mm · circular edges |
Make it your own
- Reshape the groove in "Pulley profile".
- Change the bore by moving the inner edge of the profile.
Questions about this model
Is the v-belt pulley model free?
Yes. Download it as STEP or STL and use it under CC BY 4.0: free for any purpose, including commercial use, with credit to VIZON.
Can I change the dimensions?
Yes. Open the STEP file in the VIZON CAD editor to add features, or rebuild it from the feature list on this page and change any number.
Which file should I download for 3D printing?
The STL. It is exported in millimetres with Z up, ready for any slicer. Use STEP if you want to keep editing in CAD.
