Good for
- Pins, axles and spindles
- Turned parts for lathe work
- Learning the revolve feature

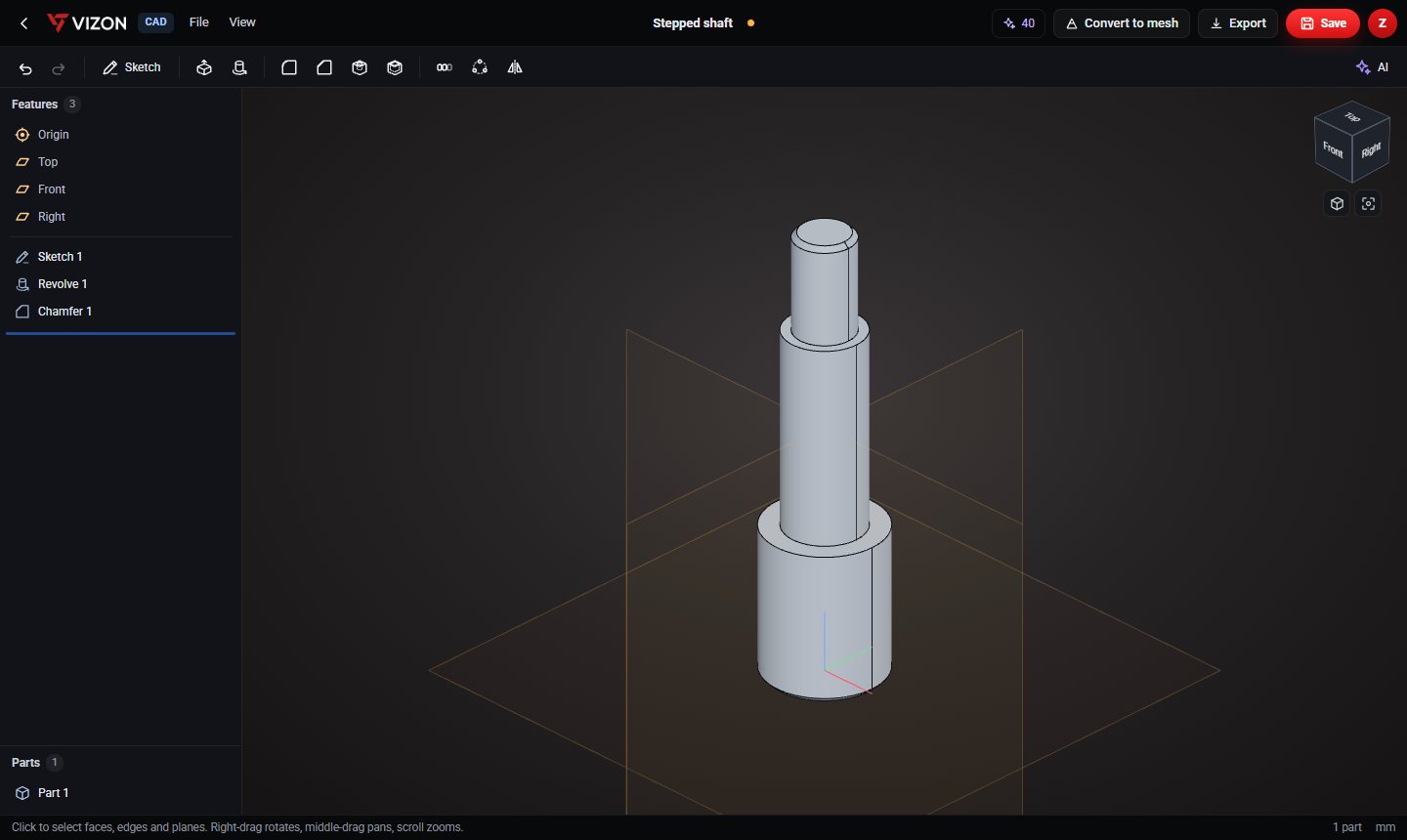

Stepped shaft CAD model
A 90 mm stepped shaft with 24, 16 and 12 mm diameters, made from a single revolved profile and finished with 1 mm chamfers at both ends. It shows how one sketch plus a revolve makes any turned part.
Free to use under CC BY 4.0. Made in VIZON CAD.
Specifications
Solid volume: 23,822 mm³, measured by the VIZON CAD kernel.
| Length | 90 mm |
|---|---|
| Diameters | 24 / 16 / 12 mm |
| End chamfers | 1 mm |
How it was made
This part is 3 parametric features in the VIZON CAD editor. Each line below is one feature in its feature list, so every size can be changed and the part rebuilds.
| Feature | Type | Settings |
|---|---|---|
| Sketch 1 | Sketch | Front plane · 1 item |
| Revolve 1 | Revolve | New · 360° about sketch Y |
| Chamfer 1 | Chamfer | 1 mm · 2 picked |
Make it your own
- Change any diameter or step length in "Sketch 1".
- Change the chamfer size in "Chamfer 1".
Questions about this model
Is the stepped shaft model free?
Yes. Download it as STEP or STL and use it under CC BY 4.0: free for any purpose, including commercial use, with credit to VIZON.
Can I change the dimensions?
Yes. Open the STEP file in the VIZON CAD editor to add features, or rebuild it from the feature list on this page and change any number.
Which file should I download for 3D printing?
The STL. It is exported in millimetres with Z up, ready for any slicer. Use STEP if you want to keep editing in CAD.
