Mounting plate CAD model
An 80 x 50 x 6 mm plate with 6 mm rounded corners and four counterbored holes for M5 cap screws (5.5 mm through, 10 mm counterbore, 3 mm deep). It is the classic first part in parametric CAD and the base example the VIZON AI learns from.
Free to use under CC BY 4.0. Made in VIZON CAD.
Specifications
Solid volume: 22,587 mm³, measured by the VIZON CAD kernel.
| Plate | 80 x 50 x 6 mm |
|---|---|
| Corner radius | 6 mm |
| Holes | 4 x M5 counterbored (5.5 mm, 10 mm x 3 mm) |
How it was made

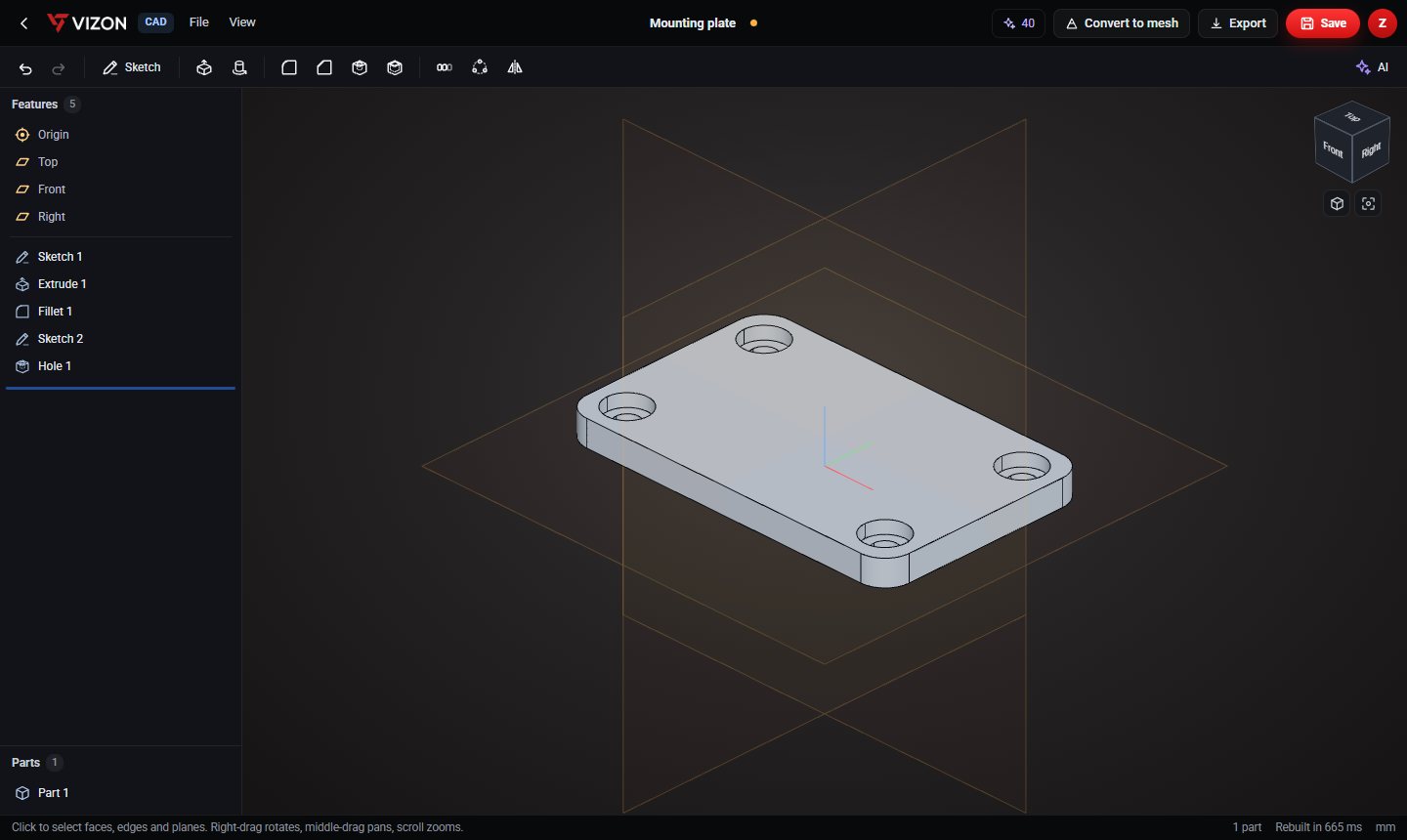

This part is 5 parametric features in the VIZON CAD editor. Each line below is one feature in its feature list, so every size can be changed and the part rebuilds.
| Feature | Type | Settings |
|---|---|---|
| Sketch 1 | Sketch | Top plane · 1 item |
| Extrude 1 | Extrude | New · 6 mm |
| Fillet 1 | Fillet | r 6 mm · vertical edges |
| Sketch 2 | Sketch | Top + 6 mm · 4 items |
| Hole 1 | Hole | Ø5.5 counterbore · through |
Make it your own
- Change the plate size in "Sketch 1".
- Change hole size and counterbore in "Hole 1".
- Round the corners more or less in "Fillet 1".
Questions about this model
Is the mounting plate model free?
Yes. Download it as STEP or STL and use it under CC BY 4.0: free for any purpose, including commercial use, with credit to VIZON.
Can I change the dimensions?
Yes. Open the STEP file in the VIZON CAD editor to add features, or rebuild it from the feature list on this page and change any number.
Which file should I download for 3D printing?
The STL. It is exported in millimetres with Z up, ready for any slicer. Use STEP if you want to keep editing in CAD.
