Good for
- Desk and bedside phone stand
- Video call and recipe stand
- Beginner-friendly 3D print with no supports

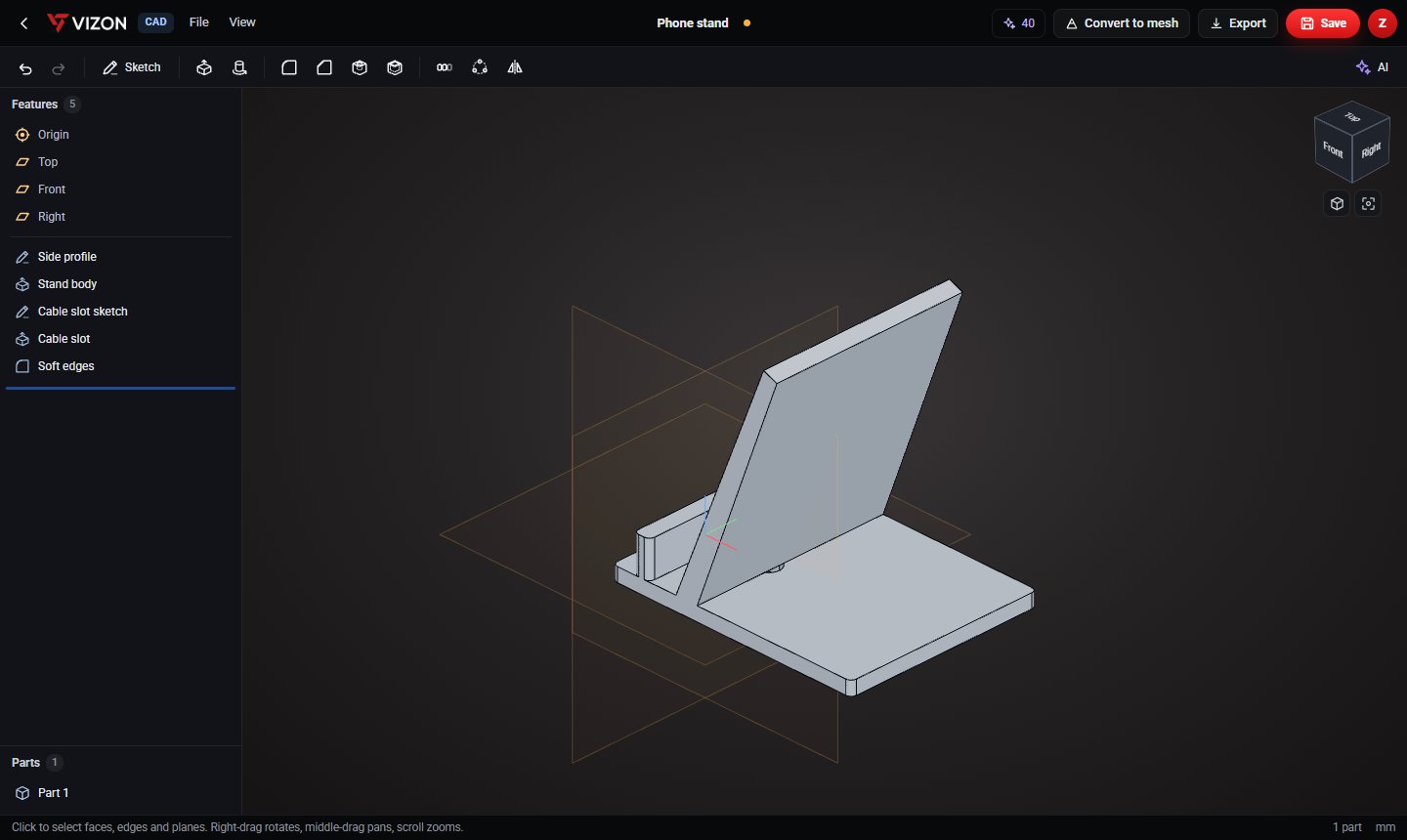

Phone stand CAD model
A desk phone stand drawn as one side profile and extruded 70 mm wide. The angled back supports the phone, a front lip stops it sliding, and a slot through the base lets a charging cable reach the phone while it stands.
Free to use under CC BY 4.0. Made in VIZON CAD.
Specifications
Solid volume: 75,226 mm³, measured by the VIZON CAD kernel.
| Width | 70 mm |
|---|---|
| Footprint | 90 x 70 mm |
| Height | 87 mm |
| Lip height | 18 mm |
| Cable slot | 8 mm wide |
How it was made
This part is 5 parametric features in the VIZON CAD editor. Each line below is one feature in its feature list, so every size can be changed and the part rebuilds.
| Feature | Type | Settings |
|---|---|---|
| Side profile | Sketch | Front plane · 1 item |
| Stand body | Extrude | New · 70 mm symmetric |
| Cable slot sketch | Sketch | Top + 5 mm · 1 item |
| Cable slot | Extrude | Remove · through all |
| Soft edges | Fillet | r 2 mm · vertical edges |
Make it your own
- Change the viewing angle by moving points in "Side profile".
- Make it wider for tablets with the "Stand body" depth.
- Widen the cable slot in "Cable slot sketch".
Questions about this model
Is the phone stand model free?
Yes. Download it as STEP or STL and use it under CC BY 4.0: free for any purpose, including commercial use, with credit to VIZON.
Can I change the dimensions?
Yes. Open the STEP file in the VIZON CAD editor to add features, or rebuild it from the feature list on this page and change any number.
Which file should I download for 3D printing?
The STL. It is exported in millimetres with Z up, ready for any slicer. Use STEP if you want to keep editing in CAD.
